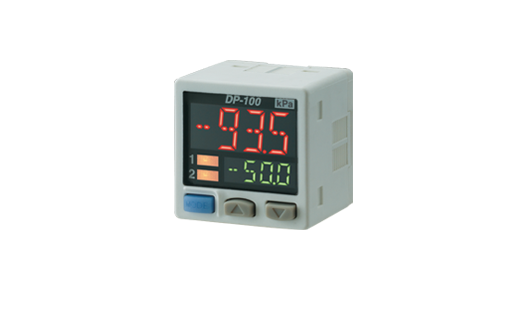

- PANASONIC DP-100
- Model: DP-100
- Hãng: Panasonic
Cảm biến áp suất hiển thị kép
dãi đo:
−100.0 to +100.0 kPa
−0.100 to +1.000 MPa
Ren kết nối: M5 F , R1/8'', NPT 1/8'', G1/8''
-
Bảng giá sản phẩm
Số lượng Giá bán (VNĐ) 1+ Liên hệ 5+ Liên hệ 10+ Liên hệ 20+ Liên hệ Chưa bao gồm VAT
Thông tin đặt hàng4-6 tuần
Tối thiểu: 1Đặt hàng
- Mô tả chi tiết
- Thông số kỹ thuật
- Bình luận
CẢM BIẾN ÁP SUẤT KỸ THUẬT SỐ HIỂN THỊ KÉP [DÙNG KHÍ] DP-100
Cảm biến áp suất kỹ thuật số hiển thị kép DP-100 là cảm biến áp suất có độ chính xác cao và đáng tin cậy được trang bị màn hình hiển thị mới có góc nhìn rộng hơn và độ rõ nét được cải thiện. Phần áp suất và phạm vi cài đặt của màn hình cũng đã được tăng lên như một cải tiến khác. Dòng DP-100 cũng cung cấp loại đa chức năng cho phép lựa chọn đầu ra analog (điện áp/dòng điện) hoặc đầu vào bên ngoài (tự động tham chiếu/điều chỉnh mức 0 từ xa) để phù hợp với nhiều ứng dụng.
Đặc trưng:
Độ phân giải cao và độ lặp lại
Các loại áp suất thấp và cao
Màn hình kép 3 màu (Đỏ, Xanh lục, Cam); Công nghiệp đầu tiên
Đầu ra analog
Giá trị hiện tại và ngưỡng trong một chế độ xem
Chức năng sao chép; Tiêu chuẩn toàn cầu mới
Ba chế độ hoạt động, cài đặt dễ dàng
Được trang bị chế độ ECO
Dễ dàng cài đặt
Loại đầu nối M8 có sẵn ở một số kiểu máy
PART NUMBER LIST
Part No. | Datasheet | CE Marking Directive Compliance | Type of Pressure | Rated Pressure Range | Set Pressure Range | Pressure Withstandability | Applicable Fluid | Supply Voltage | Power Consumption | Comparative Output | Comparative Output: Output Operation | Comparative Output: Output Modes | Comparative output: Hysteresis | Comparative Output: Repeatability | Comparative Output: Response Time | Comparative Output: Short-Circuit Protection | External Input | Analog Current Output | Analog Voltage Output | Display | Display: Displayable Pressure Range | Indicator | Protection | Ambient Temperature | Ambient Humidity | Voltage Withstandability | Insulation Resistance | Vibration Resistance | Shock Resistance | Temperature Characteristics | Pressure Port | Material | Connecting Method | Cable Length | Weight (Typ.) | Accessories |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EMC Directive, RoHS Directive
|
Gauge pressure
|
-100.0 to +100.0 kPa
|
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
500 kPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
NPN open-collector transistor - Maximum sink current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and 0 V) - Residual voltage : 2 V or less (at 100 mA sink current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.1 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
ON voltage : 0.4 V DC or less OFF voltage : 5 to 30 V DC, or open Input impedance : 10 kΩ approx. Input time : 1 ms or more |
Output current : 4 to 20 mA
Zero point : 12 mA ±5 % F.S. Span : 16 mA ±5 % F.S. Linearity : within ±1 % F.S. Load resistance : 250 Ω (max.) |
Output voltage : 1 to 5 V DC
Zero point : within 3 V ±5 % F.S. Span : within 4 V ±5 % F.S. Linearity : within ±1 % F.S. Output impedance : 1 kΩ approx. |
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
Orange LED
(Comparative output 1 operation indicator : Lights up when comparative output is ON, Analog voltage output operation indicator : Lights up when setting) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±0.5 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + R (PT) 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
||||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-0.100 to +1.000 MPa
|
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
1.5 MPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
NPN open-collector transistor - Maximum sink current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and 0 V) - Residual voltage : 2 V or less (at 100 mA sink current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.2 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
-
|
-
|
-
|
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Orange LED
(Comparative output 1 operation indicator, comparative output 2 operation indicator : Lights up when each comparative output is ON) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±1 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + R (PT) 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
||||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-0.100 to +1.000 MPa
|
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
1.5 MPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
PNP open-collector transistor - Maximum source current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and +V) - Residual voltage : 2 V or less (at 100 mA source current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.2 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
ON voltage : 5 V to +V DC OFF voltage : 0.6 V DC or less, or open Input impedance : 10 kΩ approx. Input time : 1 ms or more |
Output current : 2.4 to 20 mA
Zero point : 4 mA ±5 % F.S. Span : 17.6 mA ±5 % F.S. Linearity : within ±1 % F.S. Load resistance : 250 Ω (max.) |
Output voltage : 0.6 to 5 V
Zero point : within 1 V ±5 % F.S. Span : within 4.4 V ±5 % F.S. Linearity : within ±1 % F.S. Output impedance : 1 kΩ approx. |
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Orange LED
(Comparative output 1 operation indicator : Lights up when comparative output is ON, Analog voltage output operation indicator : Lights up when setting) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±1 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + G 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
||||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-0.100 to +1.000 MPa
|
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
1.5 MPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
PNP open-collector transistor - Maximum source current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and +V) - Residual voltage : 2 V or less (at 100 mA source current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.2 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
ON voltage : 5 V to +V DC OFF voltage : 0.6 V DC or less, or open Input impedance : 10 kΩ approx. Input time : 1 ms or more |
Output current : 2.4 to 20 mA
Zero point : 4 mA ±5 % F.S. Span : 17.6 mA ±5 % F.S. Linearity : within ±1 % F.S. Load resistance : 250 Ω (max.) |
Output voltage : 0.6 to 5 V
Zero point : within 1 V ±5 % F.S. Span : within 4.4 V ±5 % F.S. Linearity : within ±1 % F.S. Output impedance : 1 kΩ approx. |
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Orange LED
(Comparative output 1 operation indicator : Lights up when comparative output is ON, Analog voltage output operation indicator : Lights up when setting) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±1 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + NPT 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
||||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-0.100 to +1.000 MPa
|
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
1.5 MPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
PNP open-collector transistor - Maximum source current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and +V) - Residual voltage : 2 V or less (at 100 mA source current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.2 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
-
|
-
|
-
|
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Orange LED
(Comparative output 1 operation indicator, comparative output 2 operation indicator : Lights up when each comparative output is ON) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±1 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + G 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
||||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-0.100 to +1.000 MPa
|
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
1.5 MPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
NPN open-collector transistor - Maximum sink current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and 0 V) - Residual voltage : 2 V or less (at 100 mA sink current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.2 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
-
|
-
|
-
|
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Orange LED
(Comparative output 1 operation indicator, comparative output 2 operation indicator : Lights up when each comparative output is ON) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±1 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + NPT 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
Net weight: 40 g approx., Gross weight: 130 g approx.
|
CN-14A-C2 (Connector attached cable 2 m 6.562 ft): 1pc. (excluding M8 plug-in connector type)
|
||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-0.100 to +1.000 MPa
|
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
1.5 MPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
PNP open-collector transistor - Maximum source current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and +V) - Residual voltage : 2 V or less (at 100 mA source current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.2 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
-
|
-
|
-
|
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Orange LED
(Comparative output 1 operation indicator, comparative output 2 operation indicator : Lights up when each comparative output is ON) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±1 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + NPT 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
Net weight: 40 g approx., Gross weight: 130 g approx.
|
CN-14A-C2 (Connector attached cable 2 m 6.562 ft): 1pc. (excluding M8 plug-in connector type)
|
||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-0.100 to +1.000 MPa
|
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
1.5 MPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
NPN open-collector transistor - Maximum sink current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and 0 V) - Residual voltage : 2 V or less (at 100 mA sink current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.2 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
ON voltage : 0.4 V DC or less OFF voltage : 5 to 30 V DC, or open Input impedance : 10 kΩ approx. Input time : 1 ms or more |
Output current : 2.4 to 20 mA
Zero point : 4 mA ±5 % F.S. Span : 17.6 mA ±5 % F.S. Linearity : within ±1 % F.S. Load resistance : 250 Ω (max.) |
Output voltage : 0.6 to 5 V
Zero point : within 1 V ±5 % F.S. Span : within 4.4 V ±5 % F.S. Linearity : within ±1 % F.S. Output impedance : 1 kΩ approx. |
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Orange LED
(Comparative output 1 operation indicator : Lights up when comparative output is ON, Analog voltage output operation indicator : Lights up when setting) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±1 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + R (PT) 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
Net weight: 40 g approx., Gross weight: 130 g approx.
|
CN-14A-C2 (Connector attached cable 2 m 6.562 ft): 1pc. (excluding M8 plug-in connector type)
|
||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-0.100 to +1.000 MPa
|
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
1.5 MPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
NPN open-collector transistor - Maximum sink current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and 0 V) - Residual voltage : 2 V or less (at 100 mA sink current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.2 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
ON voltage : 0.4 V DC or less OFF voltage : 5 to 30 V DC, or open Input impedance : 10 kΩ approx. Input time : 1 ms or more |
Output current : 2.4 to 20 mA
Zero point : 4 mA ±5 % F.S. Span : 17.6 mA ±5 % F.S. Linearity : within ±1 % F.S. Load resistance : 250 Ω (max.) |
Output voltage : 0.6 to 5 V
Zero point : within 1 V ±5 % F.S. Span : within 4.4 V ±5 % F.S. Linearity : within ±1 % F.S. Output impedance : 1 kΩ approx. |
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Orange LED
(Comparative output 1 operation indicator : Lights up when comparative output is ON, Analog voltage output operation indicator : Lights up when setting) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±1 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + NPT 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
||||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-100.0 to +100.0 kPa
|
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
500 kPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
PNP open-collector transistor - Maximum source current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and +V) - Residual voltage : 2 V or less (at 100 mA source current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.1 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
ON voltage : 5 V to +V DC OFF voltage : 0.6 V DC or less, or open Input impedance : 10 kΩ approx. Input time : 1 ms or more |
Output current : 4 to 20 mA
Zero point : 12 mA ±5 % F.S. Span : 16 mA ±5 % F.S. Linearity : within ±1 % F.S. Load resistance : 250 Ω (max.) |
Output voltage : 1 to 5 V DC
Zero point : within 3 V ±5 % F.S. Span : within 4 V ±5 % F.S. Linearity : within ±1 % F.S. Output impedance : 1 kΩ approx. |
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
Orange LED
(Comparative output 1 operation indicator : Lights up when comparative output is ON, Analog voltage output operation indicator : Lights up when setting) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±0.5 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + G 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
Net weight: 40 g approx., Gross weight: 130 g approx.
|
CN-14A-C2 (Connector attached cable 2 m 6.562 ft): 1pc. (excluding M8 plug-in connector type)
|
||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-100.0 to +100.0 kPa
|
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
500 kPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
PNP open-collector transistor - Maximum source current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and +V) - Residual voltage : 2 V or less (at 100 mA source current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.1 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
-
|
-
|
-
|
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
Orange LED
(Comparative output 1 operation indicator, comparative output 2 operation indicator : Lights up when each comparative output is ON) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±0.5 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + G 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
Net weight: 40 g approx., Gross weight: 130 g approx.
|
CN-14A-C2 (Connector attached cable 2 m 6.562 ft): 1pc. (excluding M8 plug-in connector type)
|
||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-100.0 to +100.0 kPa
|
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
500 kPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
NPN open-collector transistor - Maximum sink current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and 0 V) - Residual voltage : 2 V or less (at 100 mA sink current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.1 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
-
|
-
|
-
|
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
Orange LED
(Comparative output 1 operation indicator, comparative output 2 operation indicator : Lights up when each comparative output is ON) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±0.5 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + NPT 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
||||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-100.0 to +100.0 kPa
|
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
500 kPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
NPN open-collector transistor - Maximum sink current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and 0 V) - Residual voltage : 2 V or less (at 100 mA sink current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.1 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
ON voltage : 0.4 V DC or less OFF voltage : 5 to 30 V DC, or open Input impedance : 10 kΩ approx. Input time : 1 ms or more |
Output current : 4 to 20 mA
Zero point : 12 mA ±5 % F.S. Span : 16 mA ±5 % F.S. Linearity : within ±1 % F.S. Load resistance : 250 Ω (max.) |
Output voltage : 1 to 5 V DC
Zero point : within 3 V ±5 % F.S. Span : within 4 V ±5 % F.S. Linearity : within ±1 % F.S. Output impedance : 1 kΩ approx. |
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
Orange LED
(Comparative output 1 operation indicator : Lights up when comparative output is ON, Analog voltage output operation indicator : Lights up when setting) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±0.5 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + R (PT) 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
Net weight: 40 g approx., Gross weight: 130 g approx.
|
CN-14A-C2 (Connector attached cable 2 m 6.562 ft): 1pc. (excluding M8 plug-in connector type)
|
||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-100.0 to +100.0 kPa
|
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
500 kPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
NPN open-collector transistor - Maximum sink current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and 0 V) - Residual voltage : 2 V or less (at 100 mA sink current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.1 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
-
|
-
|
-
|
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
Orange LED
(Comparative output 1 operation indicator, comparative output 2 operation indicator : Lights up when each comparative output is ON) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±0.5 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + R (PT) 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
||||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-0.100 to +1.000 MPa
|
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
1.5 MPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
PNP open-collector transistor - Maximum source current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and +V) - Residual voltage : 2 V or less (at 100 mA source current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.2 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
-
|
-
|
-
|
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Orange LED
(Comparative output 1 operation indicator, comparative output 2 operation indicator : Lights up when each comparative output is ON) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±1 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + G 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
Net weight: 40 g approx., Gross weight: 130 g approx.
|
CN-14A-C2 (Connector attached cable 2 m 6.562 ft): 1pc. (excluding M8 plug-in connector type)
|
||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-100.0 to +100.0 kPa
|
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
500 kPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
PNP open-collector transistor - Maximum source current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and +V) - Residual voltage : 2 V or less (at 100 mA source current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.1 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
ON voltage : 5 V to +V DC OFF voltage : 0.6 V DC or less, or open Input impedance : 10 kΩ approx. Input time : 1 ms or more |
Output current : 4 to 20 mA
Zero point : 12 mA ±5 % F.S. Span : 16 mA ±5 % F.S. Linearity : within ±1 % F.S. Load resistance : 250 Ω (max.) |
Output voltage : 1 to 5 V DC
Zero point : within 3 V ±5 % F.S. Span : within 4 V ±5 % F.S. Linearity : within ±1 % F.S. Output impedance : 1 kΩ approx. |
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
Orange LED
(Comparative output 1 operation indicator : Lights up when comparative output is ON, Analog voltage output operation indicator : Lights up when setting) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±0.5 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + G 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
||||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-0.100 to +1.000 MPa
|
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
1.5 MPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
PNP open-collector transistor - Maximum source current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and +V) - Residual voltage : 2 V or less (at 100 mA source current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.2 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
-
|
-
|
-
|
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Orange LED
(Comparative output 1 operation indicator, comparative output 2 operation indicator : Lights up when each comparative output is ON) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±1 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + G 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
||||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-100.0 to +100.0 kPa
|
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
500 kPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
NPN open-collector transistor - Maximum sink current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and 0 V) - Residual voltage : 2 V or less (at 100 mA sink current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.1 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
ON voltage : 0.4 V DC or less OFF voltage : 5 to 30 V DC, or open Input impedance : 10 kΩ approx. Input time : 1 ms or more |
Output current : 4 to 20 mA
Zero point : 12 mA ±5 % F.S. Span : 16 mA ±5 % F.S. Linearity : within ±1 % F.S. Load resistance : 250 Ω (max.) |
Output voltage : 1 to 5 V DC
Zero point : within 3 V ±5 % F.S. Span : within 4 V ±5 % F.S. Linearity : within ±1 % F.S. Output impedance : 1 kΩ approx. |
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
Orange LED
(Comparative output 1 operation indicator : Lights up when comparative output is ON, Analog voltage output operation indicator : Lights up when setting) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±0.5 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + NPT 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
Net weight: 40 g approx., Gross weight: 130 g approx.
|
CN-14A-C2 (Connector attached cable 2 m 6.562 ft): 1pc. (excluding M8 plug-in connector type)
|
||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-100.0 to +100.0 kPa
|
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
500 kPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
NPN open-collector transistor - Maximum sink current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and 0 V) - Residual voltage : 2 V or less (at 100 mA sink current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.1 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
ON voltage : 0.4 V DC or less OFF voltage : 5 to 30 V DC, or open Input impedance : 10 kΩ approx. Input time : 1 ms or more |
Output current : 4 to 20 mA
Zero point : 12 mA ±5 % F.S. Span : 16 mA ±5 % F.S. Linearity : within ±1 % F.S. Load resistance : 250 Ω (max.) |
Output voltage : 1 to 5 V DC
Zero point : within 3 V ±5 % F.S. Span : within 4 V ±5 % F.S. Linearity : within ±1 % F.S. Output impedance : 1 kΩ approx. |
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
Orange LED
(Comparative output 1 operation indicator : Lights up when comparative output is ON, Analog voltage output operation indicator : Lights up when setting) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±0.5 % F.S.
(at +20 ℃ +68 ℉) |
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
Net weight: 30 g approx., Gross weight: 120 g approx.
|
CN-14A-C2 (Connector attached cable 2 m 6.562 ft): 1pc. (excluding M8 plug-in connector type)
|
|||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-0.100 to +1.000 MPa
|
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
1.5 MPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
NPN open-collector transistor - Maximum sink current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and 0 V) - Residual voltage : 2 V or less (at 100 mA sink current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.2 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
-
|
-
|
-
|
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Orange LED
(Comparative output 1 operation indicator, comparative output 2 operation indicator : Lights up when each comparative output is ON) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±1 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + R (PT) 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
Net weight: 40 g approx., Gross weight: 130 g approx.
|
CN-14A-C2 (Connector attached cable 2 m 6.562 ft): 1pc. (excluding M8 plug-in connector type)
|
||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-0.100 to +1.000 MPa
|
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
1.5 MPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
PNP open-collector transistor - Maximum source current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and +V) - Residual voltage : 2 V or less (at 100 mA source current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.2 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
-
|
-
|
-
|
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Orange LED
(Comparative output 1 operation indicator, comparative output 2 operation indicator : Lights up when each comparative output is ON) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±1 % F.S.
(at +20 ℃ +68 ℉) |
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
Net weight: 30 g approx., Gross weight: 120 g approx.
|
CN-14A-C2 (Connector attached cable 2 m 6.562 ft): 1pc. (excluding M8 plug-in connector type)
|
|||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-100.0 to +100.0 kPa
|
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
500 kPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
PNP open-collector transistor - Maximum source current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and +V) - Residual voltage : 2 V or less (at 100 mA source current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.1 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
ON voltage : 5 V to +V DC OFF voltage : 0.6 V DC or less, or open Input impedance : 10 kΩ approx. Input time : 1 ms or more |
Output current : 4 to 20 mA
Zero point : 12 mA ±5 % F.S. Span : 16 mA ±5 % F.S. Linearity : within ±1 % F.S. Load resistance : 250 Ω (max.) |
Output voltage : 1 to 5 V DC
Zero point : within 3 V ±5 % F.S. Span : within 4 V ±5 % F.S. Linearity : within ±1 % F.S. Output impedance : 1 kΩ approx. |
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
Orange LED
(Comparative output 1 operation indicator : Lights up when comparative output is ON, Analog voltage output operation indicator : Lights up when setting) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±0.5 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + NPT 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
Net weight: 40 g approx., Gross weight: 130 g approx.
|
CN-14A-C2 (Connector attached cable 2 m 6.562 ft): 1pc. (excluding M8 plug-in connector type)
|
||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-0.100 to +1.000 MPa
|
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
1.5 MPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
NPN open-collector transistor - Maximum sink current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and 0 V) - Residual voltage : 2 V or less (at 100 mA sink current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.2 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
-
|
-
|
-
|
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Orange LED
(Comparative output 1 operation indicator, comparative output 2 operation indicator : Lights up when each comparative output is ON) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±1 % F.S.
(at +20 ℃ +68 ℉) |
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
Net weight: 30 g approx., Gross weight: 120 g approx.
|
CN-14A-C2 (Connector attached cable 2 m 6.562 ft): 1pc. (excluding M8 plug-in connector type)
|
|||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-0.100 to +1.000 MPa
|
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
1.5 MPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
PNP open-collector transistor - Maximum source current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and +V) - Residual voltage : 2 V or less (at 100 mA source current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.2 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
ON voltage : 5 V to +V DC OFF voltage : 0.6 V DC or less, or open Input impedance : 10 kΩ approx. Input time : 1 ms or more |
Output current : 2.4 to 20 mA
Zero point : 4 mA ±5 % F.S. Span : 17.6 mA ±5 % F.S. Linearity : within ±1 % F.S. Load resistance : 250 Ω (max.) |
Output voltage : 0.6 to 5 V
Zero point : within 1 V ±5 % F.S. Span : within 4.4 V ±5 % F.S. Linearity : within ±1 % F.S. Output impedance : 1 kΩ approx. |
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Orange LED
(Comparative output 1 operation indicator : Lights up when comparative output is ON, Analog voltage output operation indicator : Lights up when setting) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±1 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + G 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
Net weight: 40 g approx., Gross weight: 130 g approx.
|
CN-14A-C2 (Connector attached cable 2 m 6.562 ft): 1pc. (excluding M8 plug-in connector type)
|
||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-0.100 to +1.000 MPa
|
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
1.5 MPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
PNP open-collector transistor - Maximum source current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and +V) - Residual voltage : 2 V or less (at 100 mA source current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.2 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
ON voltage : 5 V to +V DC OFF voltage : 0.6 V DC or less, or open Input impedance : 10 kΩ approx. Input time : 1 ms or more |
Output current : 2.4 to 20 mA
Zero point : 4 mA ±5 % F.S. Span : 17.6 mA ±5 % F.S. Linearity : within ±1 % F.S. Load resistance : 250 Ω (max.) |
Output voltage : 0.6 to 5 V
Zero point : within 1 V ±5 % F.S. Span : within 4.4 V ±5 % F.S. Linearity : within ±1 % F.S. Output impedance : 1 kΩ approx. |
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Orange LED
(Comparative output 1 operation indicator : Lights up when comparative output is ON, Analog voltage output operation indicator : Lights up when setting) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±1 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + NPT 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
Net weight: 40 g approx., Gross weight: 130 g approx.
|
CN-14A-C2 (Connector attached cable 2 m 6.562 ft): 1pc. (excluding M8 plug-in connector type)
|
||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-100.0 to +100.0 kPa
|
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
500 kPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
PNP open-collector transistor - Maximum source current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and +V) - Residual voltage : 2 V or less (at 100 mA source current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.1 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
-
|
-
|
-
|
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
Orange LED
(Comparative output 1 operation indicator, comparative output 2 operation indicator : Lights up when each comparative output is ON) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±0.5 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + G 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
||||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-0.100 to +1.000 MPa
|
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
1.5 MPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
PNP open-collector transistor - Maximum source current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and +V) - Residual voltage : 2 V or less (at 100 mA source current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.2 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
ON voltage : 5 V to +V DC OFF voltage : 0.6 V DC or less, or open Input impedance : 10 kΩ approx. Input time : 1 ms or more |
Output current : 2.4 to 20 mA
Zero point : 4 mA ±5 % F.S. Span : 17.6 mA ±5 % F.S. Linearity : within ±1 % F.S. Load resistance : 250 Ω (max.) |
Output voltage : 0.6 to 5 V
Zero point : within 1 V ±5 % F.S. Span : within 4.4 V ±5 % F.S. Linearity : within ±1 % F.S. Output impedance : 1 kΩ approx. |
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Orange LED
(Comparative output 1 operation indicator : Lights up when comparative output is ON, Analog voltage output operation indicator : Lights up when setting) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±1 % F.S.
(at +20 ℃ +68 ℉) |
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
Net weight: 30 g approx., Gross weight: 120 g approx.
|
CN-14A-C2 (Connector attached cable 2 m 6.562 ft): 1pc. (excluding M8 plug-in connector type)
|
|||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-0.100 to +1.000 MPa
|
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
1.5 MPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
NPN open-collector transistor - Maximum sink current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and 0 V) - Residual voltage : 2 V or less (at 100 mA sink current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.2 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
ON voltage : 0.4 V DC or less OFF voltage : 5 to 30 V DC, or open Input impedance : 10 kΩ approx. Input time : 1 ms or more |
Output current : 2.4 to 20 mA
Zero point : 4 mA ±5 % F.S. Span : 17.6 mA ±5 % F.S. Linearity : within ±1 % F.S. Load resistance : 250 Ω (max.) |
Output voltage : 0.6 to 5 V
Zero point : within 1 V ±5 % F.S. Span : within 4.4 V ±5 % F.S. Linearity : within ±1 % F.S. Output impedance : 1 kΩ approx. |
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Orange LED
(Comparative output 1 operation indicator : Lights up when comparative output is ON, Analog voltage output operation indicator : Lights up when setting) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±1 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + R (PT) 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
||||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-0.100 to +1.000 MPa
|
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
1.5 MPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
NPN open-collector transistor - Maximum sink current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and 0 V) - Residual voltage : 2 V or less (at 100 mA sink current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.2 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
ON voltage : 0.4 V DC or less OFF voltage : 5 to 30 V DC, or open Input impedance : 10 kΩ approx. Input time : 1 ms or more |
Output current : 2.4 to 20 mA
Zero point : 4 mA ±5 % F.S. Span : 17.6 mA ±5 % F.S. Linearity : within ±1 % F.S. Load resistance : 250 Ω (max.) |
Output voltage : 0.6 to 5 V
Zero point : within 1 V ±5 % F.S. Span : within 4.4 V ±5 % F.S. Linearity : within ±1 % F.S. Output impedance : 1 kΩ approx. |
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Orange LED
(Comparative output 1 operation indicator : Lights up when comparative output is ON, Analog voltage output operation indicator : Lights up when setting) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±1 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + NPT 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
Net weight: 40 g approx., Gross weight: 130 g approx.
|
CN-14A-C2 (Connector attached cable 2 m 6.562 ft): 1pc. (excluding M8 plug-in connector type)
|
||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-0.100 to +1.000 MPa
|
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
1.5 MPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
NPN open-collector transistor - Maximum sink current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and 0 V) - Residual voltage : 2 V or less (at 100 mA sink current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.2 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
ON voltage : 0.4 V DC or less OFF voltage : 5 to 30 V DC, or open Input impedance : 10 kΩ approx. Input time : 1 ms or more |
Output current : 2.4 to 20 mA
Zero point : 4 mA ±5 % F.S. Span : 17.6 mA ±5 % F.S. Linearity : within ±1 % F.S. Load resistance : 250 Ω (max.) |
Output voltage : 0.6 to 5 V
Zero point : within 1 V ±5 % F.S. Span : within 4.4 V ±5 % F.S. Linearity : within ±1 % F.S. Output impedance : 1 kΩ approx. |
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Orange LED
(Comparative output 1 operation indicator : Lights up when comparative output is ON, Analog voltage output operation indicator : Lights up when setting) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±1 % F.S.
(at +20 ℃ +68 ℉) |
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
Net weight: 30 g approx., Gross weight: 120 g approx.
|
CN-14A-C2 (Connector attached cable 2 m 6.562 ft): 1pc. (excluding M8 plug-in connector type)
|
|||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-0.100 to +1.000 MPa
|
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
1.5 MPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
NPN open-collector transistor - Maximum sink current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and 0 V) - Residual voltage : 2 V or less (at 100 mA sink current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.2 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
-
|
-
|
-
|
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Orange LED
(Comparative output 1 operation indicator, comparative output 2 operation indicator : Lights up when each comparative output is ON) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±1 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + NPT 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
||||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-0.100 to +1.000 MPa
|
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
1.5 MPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
PNP open-collector transistor - Maximum source current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and +V) - Residual voltage : 2 V or less (at 100 mA source current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.2 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
-
|
-
|
-
|
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Orange LED
(Comparative output 1 operation indicator, comparative output 2 operation indicator : Lights up when each comparative output is ON) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±1 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + NPT 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
||||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-100.0 to +100.0 kPa
|
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
500 kPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
PNP open-collector transistor - Maximum source current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and +V) - Residual voltage : 2 V or less (at 100 mA source current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.1 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
ON voltage : 5 V to +V DC OFF voltage : 0.6 V DC or less, or open Input impedance : 10 kΩ approx. Input time : 1 ms or more |
Output current : 4 to 20 mA
Zero point : 12 mA ±5 % F.S. Span : 16 mA ±5 % F.S. Linearity : within ±1 % F.S. Load resistance : 250 Ω (max.) |
Output voltage : 1 to 5 V DC
Zero point : within 3 V ±5 % F.S. Span : within 4 V ±5 % F.S. Linearity : within ±1 % F.S. Output impedance : 1 kΩ approx. |
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
Orange LED
(Comparative output 1 operation indicator : Lights up when comparative output is ON, Analog voltage output operation indicator : Lights up when setting) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±0.5 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + G 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
||||
EMC Directive, RoHS Directive
|
Gauge pressure
|
-0.100 to +1.000 MPa
|
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
1.5 MPa
|
Non-corrosive gas
|
12 to 24 V DC ±10 % Ripple P-P 10 % or less
|
Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
PNP open-collector transistor - Maximum source current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and +V) - Residual voltage : 2 V or less (at 100 mA source current) |
NO / NC (selectable by key operation)
|
EASY mode / Hysteresis mode / Window comparator mode
|
Minimum 1 digit (variable)(however, 2 digits when using psi unit)
|
±0.2 % F.S.
(within ±2 digits) |
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
|
Incorporated
|
ON voltage : 5 V to +V DC OFF voltage : 0.6 V DC or less, or open Input impedance : 10 kΩ approx. Input time : 1 ms or more |
Output current : 2.4 to 20 mA
Zero point : 4 mA ±5 % F.S. Span : 17.6 mA ±5 % F.S. Linearity : within ±1 % F.S. Load resistance : 250 Ω (max.) |
Output voltage : 0.6 to 5 V
Zero point : within 1 V ±5 % F.S. Span : within 4.4 V ±5 % F.S. Linearity : within ±1 % F.S. Output impedance : 1 kΩ approx. |
4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
-0.101 to +1.010 MPa
-101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Orange LED
(Comparative output 1 operation indicator : Lights up when comparative output is ON, Analog voltage output operation indicator : Lights up when setting) |
IP40 (IEC)
|
-10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
|
35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
|
1,000 V AC for one min. between all supply terminals connected together and enclosure
|
50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
|
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
|
Within ±1 % F.S.
(at +20 ℃ +68 ℉) |
M5 female thread + G 1/8 male thread
|
Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
|
Connector
|
Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable
|
EATON 046938 Motorschutzschalter, 3-polig, Ir = 10 - 16 A, Schraubanschluss
50.000 VNĐ 60.000 VNĐ
Xem chi tiết
