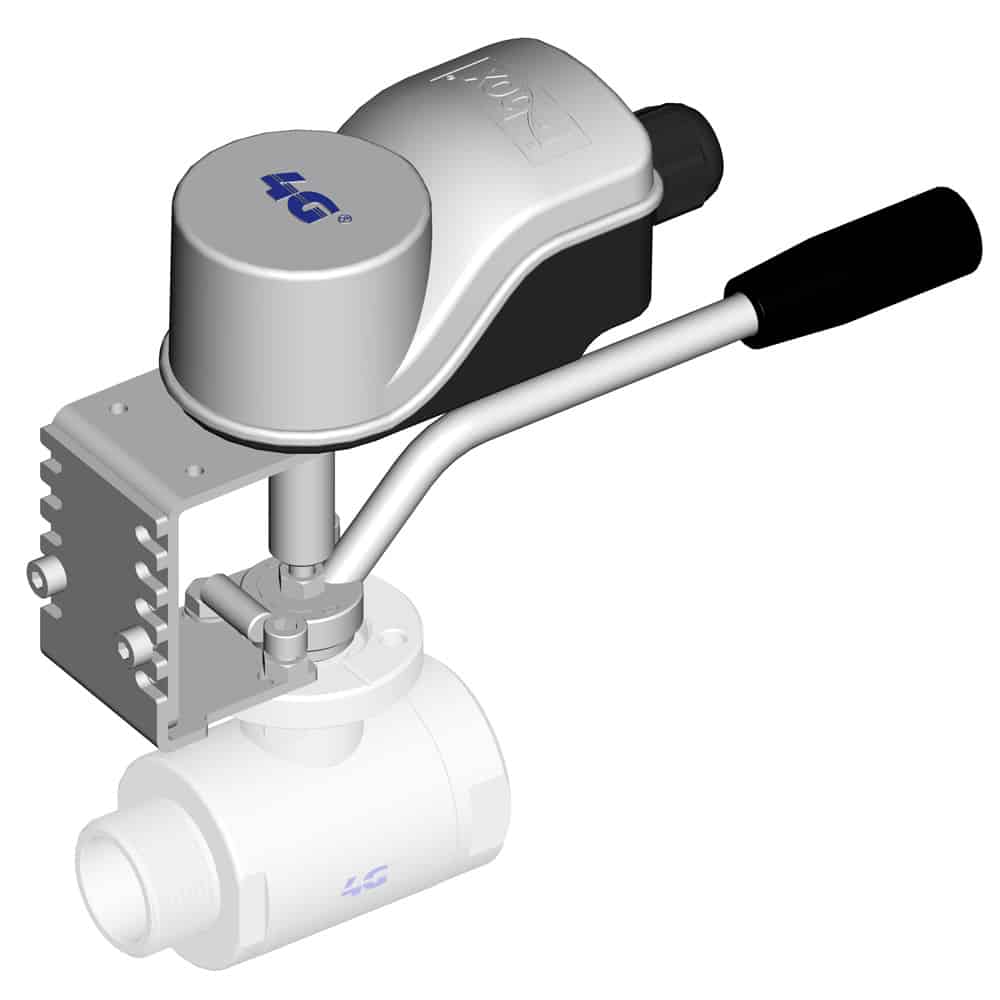

Model: 790710 77400
Hãng: 4G GHIDINI
ĐẶC TÍNH KỸ THUẬT:
•Very compact limit switch box polyamide PA6
•Transparent polycarbonate cover with integrated large OPEN-COSED indicator
•Direct mounting without mounting bracket on actuators according to VDI/VDE 3845: Hole spacing: 80 x 30mm (optional: 130x30mm, 50x25mm – with IMBHV bracket) Shaft heights: 20 or 30mm (optional: 40 and 50mm – with IMBHV bracket)
•Easy and time-saving fastening system
•Enclosure IP66 + IP67 according to DIN EN 60529 (tested by external test laboratory)
•Cable gland M20x1,5 black (for cable Ø 6-12mm)
•Sealings TPE and NBR, Screws AISI 304, Stainless steel Shaft AISI 303
•Other colours of casing available on request
•Application: Standard applications without explosive atmosphere.
1-2 mechanical switches 1-2 proximity sensors in V3 design
| TIPO | PRODUTTORE | TIPO SWITCH | VOLTAGGIO | CONS. ATT. | FREQ | CORR. A VUOTO | Pointer | MAX | CONTACTS | LIVELLO SIL | TEMP. | CLASSE IP | CODE |
| ALIMEN. | CORRENTE | AMB. TEMP. | |||||||||||
| MECCANICO | CHERRY | D44X | 24 - 250V | - | - | - | - | AC: 250V 10A | ARGENTO SILVER | SIL 1-3 (IEC 61508:2010) | -25°C ... +80°C | - | 790710 77000 3D |
| MECHANIC | DC: 24V 2,5A | ||||||||||||
| MECCANICO | CHERRY | D41X (N.O.) | 8,2V | - | - | - | - | - | ORO GOLD | SIL 1-3 (IEC 61508:2010) | -25°C ... +70°C | - | 790710 77100 3D |
| MECHANIC | |||||||||||||
| INDUTTIVO INDUCTIVE | P+F | NBB2-V3-E2 (PNP N.0.) | 10 - 30V DC | 100 mA | 1000 Hz | 15 mA | LED giallo LED yellow | - | - | SIL 1-3 (IEC 61508:2010) | -25°C ... +80°C | IP67 | 790710 77400 3D |
| INDUTTIVO | P+F | NJ2-V3-N (Öffner N.C.) | 8,2V DC | ≤ 1 mA | 1000 Hz | - | - | - | - | SIL 1-3 (IEC 61508:2010) | -25°C / +70°C | - | 790710 77500 3D |
| INDUCTIVE | ≥ 3 mA |
