Galvanic insulation (In, out)
Programmable sensor type
Programmable measuring range
Thermoresistance line compensation
Compensation of thermocouple cold junction
Output signal 4…20mA + Hart protocol
Ambient temperature from -25 to +75 °C
Rail mounting system
Autodiagnostic system
Hart protocol
ATEX certificate (LI-24/Ex)
Input signal: K, J, S, B, N, T, R, E voltage
Pt10, Pt50, Pt100, Pt200, Pt500, Pt1000,
Ni100, Cu100, resistance
Limit process: - 10mV< E<100mV
0
or -100mV< E<1000mV
Min. measuring range: 10mV or 10
Output signal: 4...20mA + HART
Power supply: 10…36V DC
Safety: 10...30V DC
Ex, Safety Ex: 10...30V DC
Max. Wires resistance: 500
Alarm signal 21,6mA or 3,75 mA or setting by user
Sensor current: 0,25mA
Accuracy: ± 0,1%
Time constant: 0,2...1s
Additional electronic damping: 0...30s
Ambient temperature: -40…+85°C
Dimensions (WxHxD): 12,5mmx99mmx114,5mm
Application and function
The temperature transmitter LI-24L is applicable to converting resistance of temperature or voltage of
thermocouple sensor to standard current signal 4-20mA.
The transmitters have two separate measuring channels enabling measurement of temperature difference,
averange, averange with redundancy, max or min temperature. Transmitter has compensation of ambient
temparature influence and compensation of thermocouple cold junction using internal/external (Pt100) sensor or constant temperature.
Most of parameters such as: sensor type, measuring range, current alarm signal when electric circuit is broken, output characteristic correction, user characteristic (60 points) are programmed using PC with HART/USB converter and
Raport 2 configuration software
For request Aplisens can set temperature transmitter parameters like measuring range, type of sensor. Their values are printed on label. Transmitter for rail mounting (TS-35).

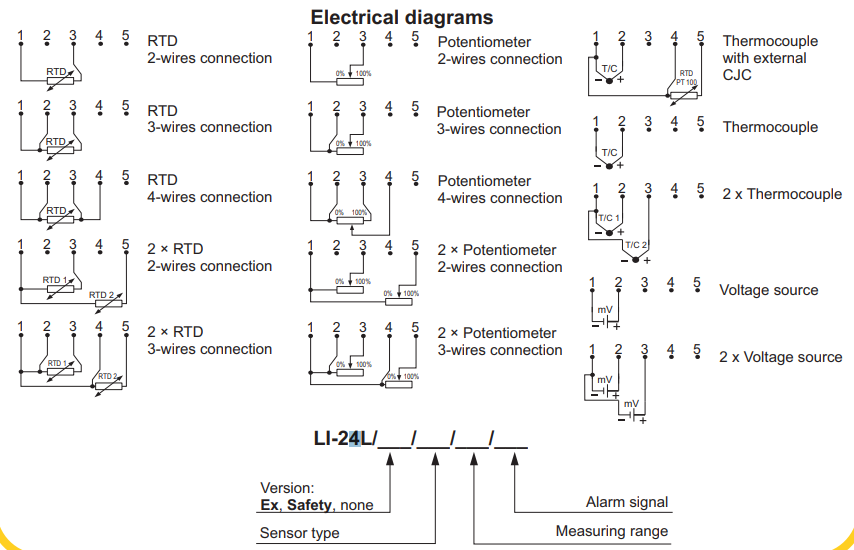

LI-24L/___/___/___/___
