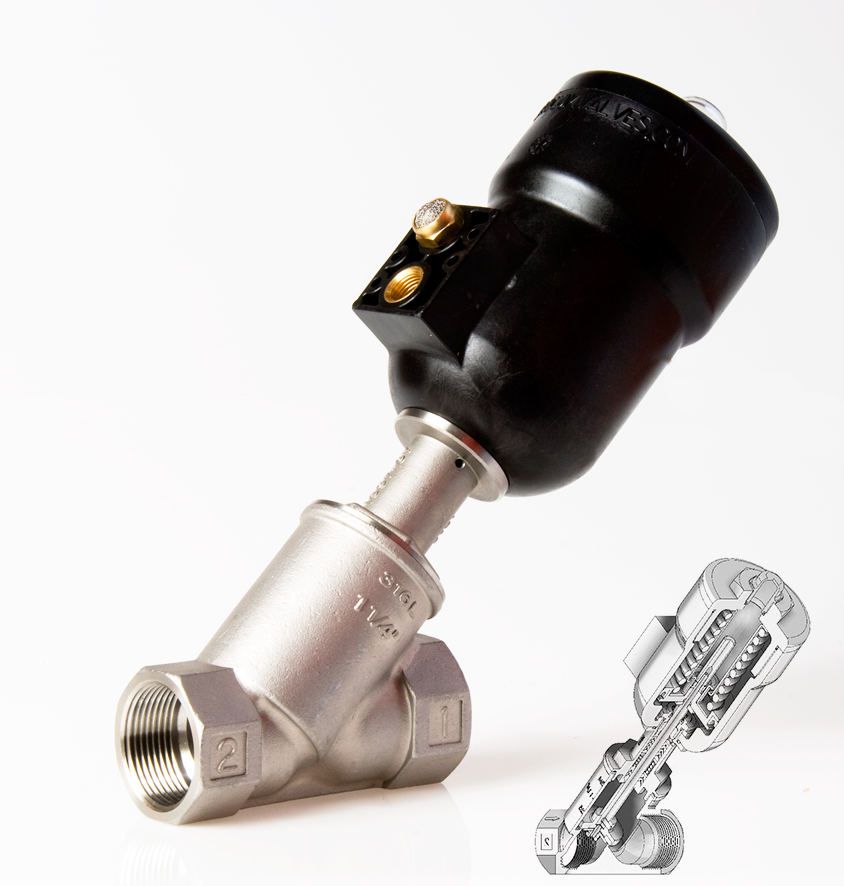

- Van Xiên Khí Nén Procom PCIPFM_025_1_1
- Model: PCIPFM_025_1_1
- Hãng: Procom
Size: DN25
Chất liệu: AISI 316L
Kích thước Actuator: D.050
Ren kết nối: FF GAS
Loại: Thường Đóng ( NC )
-
Bảng giá sản phẩm
Số lượng Giá bán (VNĐ) 1+ Liên hệ 5+ Liên hệ 10+ Liên hệ 20+ Liên hệ Chưa bao gồm VAT
Thông tin đặt hàng4-6 tuần
Tối thiểu: 1Đặt hàng
- Mô tả chi tiết
- Thông số kỹ thuật
- Bình luận
Van Xiên Khí Nén Procom
Model: PCIPFM_025_1_1
Size: DN25
Chất liệu: AISI 316L
Kích thước Actuator: D.050
Ren kết nối: FF GAS
Loại: Thường Đóng ( NC )
SS 316L BODY – TECHNOPOLYMER ACTUATOR PCIPFM
The pneumatically operated shut-off valve of the PCIPFM series consists of a free flow valve body, an intermediate and a pneumatic actuator. The Y-shape of the valve body grants higher values of the flow coefficient Kv than the similar DN conveyed flow bodies.
The strong and robust actuator (Command Head) is made of Nylon reinforced with 30% fiberglass (Technopolymer). The drive spring inside is pre-compressed; this makes the servo removable and inspectable in total safety. The intermediate packing gland is made of Carbographite loaded PTFE V-rings and Viton, for optimal sealing both at high and low temperatures
Please compare the products using the table below to find the product that best suits your requirements and for more details remember to download the product sheet, where you can find all the specifications of the different couplings
MAXIMUM PERMISSIBLE ΔP [BAR] AND FLOW COEFFICIENT VALUES[M³/H]
| DN \ Actuator [mm] | Actuator 36 | Actuator 50 | Actuator 70 | Actuator 100 |
|---|---|---|---|---|
| DN 10 | 16 bar | - | - | - |
| DN 15 | 14 bar | 18 bar | 35 bar | - |
| DN 20 | 7 bar | 14 bar | 25 bar | - |
| DN 25 | - | 9 bar | 20 bar | - |
| DN 32 | - | 5.5 bar | 13 bar | 24 bar |
| DN 40 | - | - | 8 bar | 18 bar |
| DN 50 | - | - | 5 bar | 12 bar |
| DN 65 | - | - | - | 6.5 bar |
| Kv [m³/h] |
|---|
| 3 |
| 3.9 |
| 9.3 |
| 13.8 |
| 22 |
| 31.5 |
| 39 |
| 46.7 |
DOWNLOAD FILE 3D*
*Format STEP 203 (external surfaces only)
If you are looking for a different format, a model not available in the table or you want to report a problem, please contact the Technical Department.
ORDER CODE GUIDE
PCIPFM_DN_Actuator_Connection_Version
Es. : PCIPFM_032_2_1
- [ ] = Normally closed
- NA = Normally opened
- DE = Double effect
- HT = High temperature
- V = Vacuum applications
- LIGHT = Actuator D.036
- IV = Visual indicator
