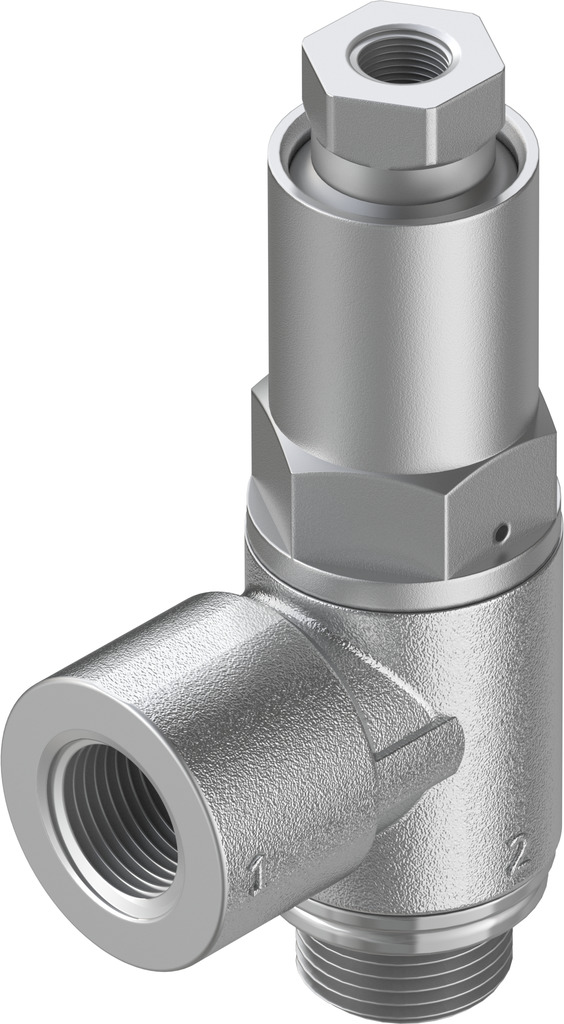

- HGL-1/8-B | 530030
- Model: HGL-1/8-B | 530030
- Hãng: Festo
Van một chiều thí điểm
Kết nối khí nén 1: G1/8
Kết nối khí nén 2: G1/8
Kết nối cổng Pilot 21: M5
Áp suất Pilot: 2 ... 10 bar-
Bảng giá sản phẩm
Số lượng Giá bán (VNĐ) 1+ Liên hệ 5+ Liên hệ 20+ Liên hệ 50+ Liên hệ Chưa bao gồm VAT
Thông tin đặt hàng2-4 tuần
Tối thiểu: 1Đặt hàng
- Mô tả chi tiết
- Thông số kỹ thuật
- Bình luận
Van Thí Điểm 1 chiều
Mã hàng: HGL-1/8-B
S/N: 530030
GTIN: 4052568015770
Technical Data
- Valve functionUnlockable non-return function
- Pneumatic connection 1G1/8
- Pneumatic connection 2G1/8
- Pilot air port 21M5
- Actuation typePneumatic
- Type of mountingScrew-in With external thread
- Operating pressure0.05 MPa ... 1 MPa
- Operating pressure0.5 bar ... 10 bar
- Pilot pressure MPa0.2 MPa ... 1 MPa
- Pilot pressure2 bar ... 10 bar
- Pilot pressure psi29 psi ... 145 psi
- Ambient temperature-10 °C ... 60 °C
- Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
- Maritime classificationSee certificate
- Mounting positionAny

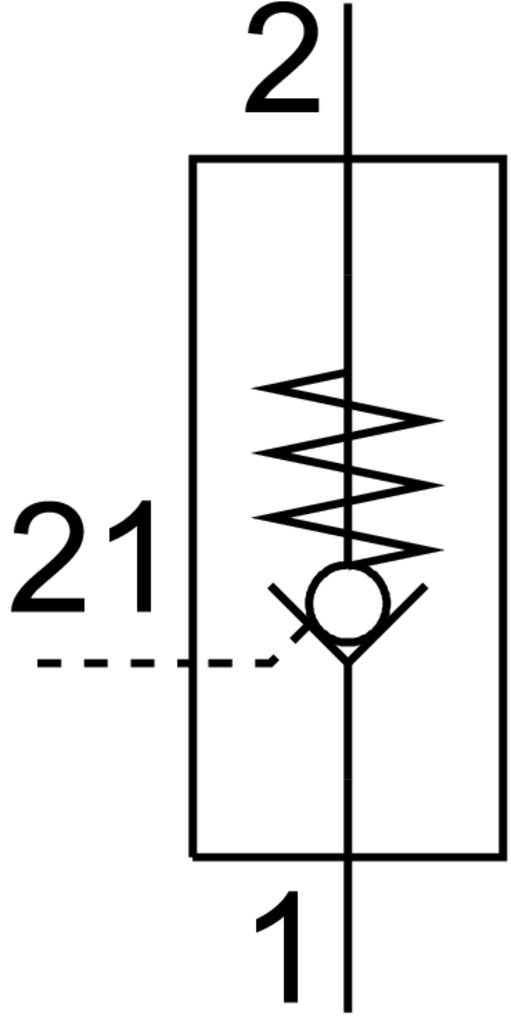

- Symbol00991456
- Standard flow rate 1->2 (6-0)430 l/min
- Standard nominal flow rate 1->2 (6-5)300 l/min
- Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)2 - Moderate corrosion stress
- LABS (PWIS) conformityVDMA24364-B2-L
- Storage temperature-10 °C ... 60 °C
- Temperature of medium-10 °C ... 60 °C
- Pilot mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
- Nominal tightening torque3.5 Nm
- Tolerance for nominal tightening torque± 10%
- Product weight20.8 g
- Note on materialsRoHS-compliant
- Seals materialNBR
- Hollow bolt materialWrought aluminum alloy Anodized
- Releasing ring materialPOM
- Non-return collar materialNBR
- Swivel joint materialDie-cast zinc
