Model: 74.2.390.0000
Hãng: CPF Industriale
74.2.390.0000 Bộ giảm áp cho Xy Lanh với kết nối phía sau (230-10BAR)
Lý tưởng cho các hệ thống di động để hàn, cắt oxy và sưởi ấm.
ĐẶC TÍNH KỸ THUẬT:
- Khí: Acetylene
- Nhiệt độ: -15° +60°
- Áp suất: Tối đa 230 Bar
- Đầu ra: điều chỉnh 0/10 Bar
.PNG)
Cylinder Pressure Reducers with Rear connection (230-10Bar)
Ideal for portable systems for welding, oxy-cutting and heating
STANDARD SPECIFICATIONS:
Construction standard: EN ISO 2503
Inlet pressure: 230 Bar Max
Outlet pressure: Adjustable 0/10 Bar
Capacity: See Table
Operating temperature: -15° +60°
Outlet connection: 3/8 with nut and rubber holder for 6/8 mm hose
Always single test
ISO 5171 pressure gauges diam. 63mm class 2.5
HP pressure gauge Full scale 0/315 bar
LP pressure gauge Full scale 0/15 bar
Body Brass -CW617N-UNI EN 12165
Shutter High pressure valve with PVDF seat
Zamak bell 5
NBR diaphragm diam.50
Stainless Steel Mesh Filter placed inside the Reducer
NB. We recommend the use of the safety valve for use with oxygen and combustible gases
|
TEMPLATE
|
ATTACK
|
SCOPE
|
TYPOLOGY
|
|---|---|---|---|
|
74.2.390.0000
|
UNI 11144/2
|
40 NM3/H
|
O2
|
AIR GAS FLOW CURVE (230-10BAR)
|
TEMPLATE
|
ATTACK
|
SCOPE
|
TYPOLOGY
|
|---|---|---|---|
|
74.2.390.0001
|
NF E 29*658
|
5 NM3/H
|
ACETYLENE
|

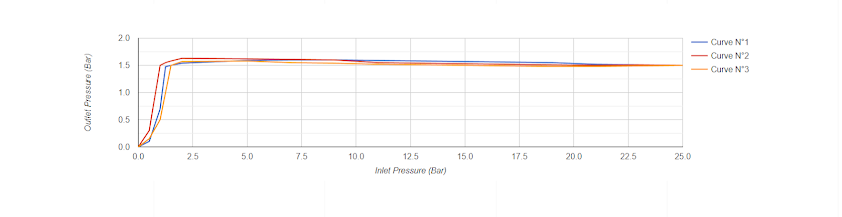

AIR GAS FLOW CURVE (25-1.5 BAR)
