HGL-1/4-QS-10 | 530042
  • HGL-1/4-QS-10 | 530042
  • Model: HGL-1/4-QS-10 | 530042
  • Hãng: Festo
  • Van một chiều thí điểm
    Kết nối khí nén 1: ống 10mm
    Kết nối khí nén 2: G1/4
    Kết nối cổng Pilot 21: G1/8
    Áp suất Pilot: 2 ... 10 bar

  • Bảng giá sản phẩm
    Số lượng Giá bán (VNĐ)
    1+ Liên hệ
    10+ Liên hệ
    20+ Liên hệ
    50+ Liên hệ

    Chưa bao gồm VAT

    Thông tin đặt hàng

    2-3 tuần

    Tối thiểu: 1
    Đặt hàng
  • Mô tả chi tiết
  • Thông số kỹ thuật
  • Bình luận

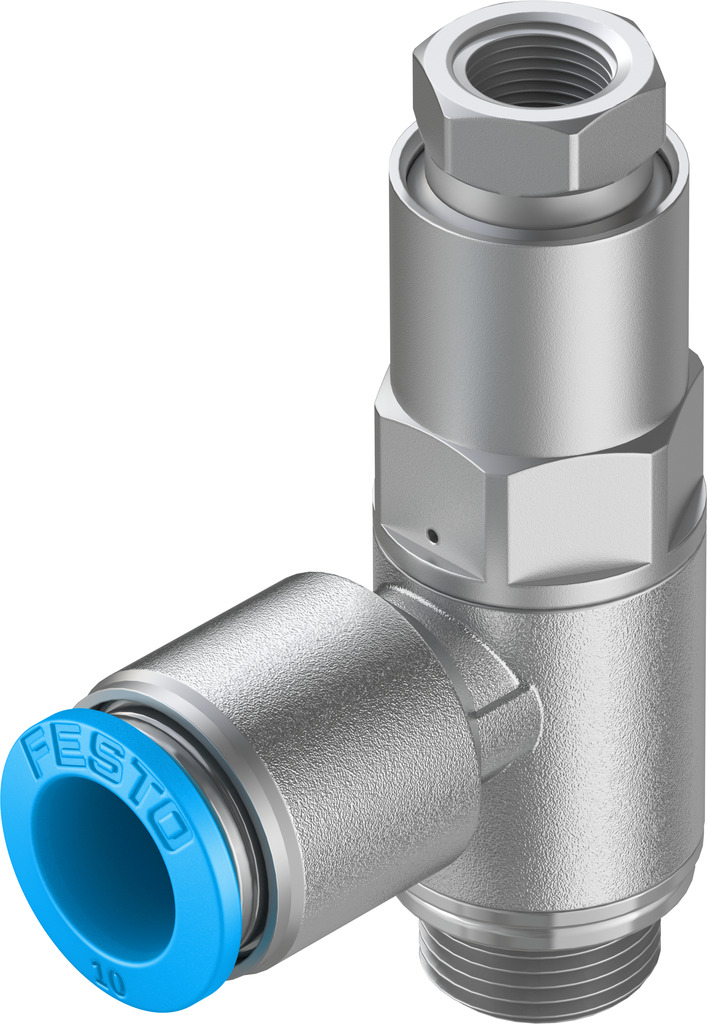

Van thí điểm một chiều Festo - Pilot Non Return Valve

Mã hàng: HGL-1/4-QS-10
S/N: 530042
GTIN: 4052568085612

Piloted non return valvePiloted non return valve

Technical Data

  • Valve functionUnlockable non-return function
  • Pneumatic connection 1QS-10
  • Pneumatic connection 2
  • Pilot air port 21G1/8
  • Actuation typePneumatic
  • Type of mountingScrew-in With external thread
  • Operating pressure0.05 MPa ... 1 MPa
  • Operating pressure0.5 bar ... 10 bar
  • Pilot pressure MPa0.2 MPa ... 1 MPa
  • Pilot pressure2 bar ... 10 bar
  • Pilot pressure psi29 psi ... 145 psi
  • Ambient temperature-10 °C ... 60 °C
  • Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
  • Maritime classificationSee certificate
  • Mounting positionAny
  • Symbol00991456
  • Standard flow rate 1->2 (6-0)670 l/min
  • Standard nominal flow rate 1->2 (6-5)400 l/min
  • Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
  • Corrosion resistance class (CRC)2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Storage temperature-10 °C ... 60 °C
  • Temperature of medium-10 °C ... 60 °C
  • Pilot mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
  • Nominal tightening torque11 Nm
  • Tolerance for nominal tightening torque± 10%
  • Product weight45 g
  • Note on materialsRoHS-compliant
  • Seals materialNBR
  • Hollow bolt materialWrought aluminum alloy Anodized
  • Releasing ring materialPOM
  • Non-return collar materialNBR
  • Swivel joint materialDie-cast zinc
