Serie VSP/2V – FF/BW/SW
Pneumatic ball valves ON-OFF
Materials: in stainless steel AISI 316L (1.4404)
Size: DN 10 – 50
Rating: PN 40 (10-25) – PN 25 (32-50)
Temperature: -25°C/+120°C.

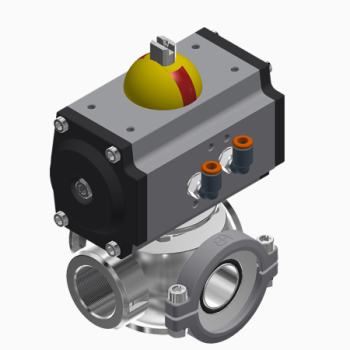

- Burocco VSP/3V – CS+FF
- Model: Burocco VSP/3V – CS+FF
- Hãng: Burocco
Van 3 ngã điều khiển bằng khí nén
Vật liệu: Inox AISI 316L (1.4404)
Kích thước: DN 25
Áp suất: PN 40
Kết nối: 2 x Clamp + 1 x Ren 1”-
Bảng giá sản phẩm
Số lượng Giá bán (VNĐ) 1+ Liên hệ 5+ Liên hệ 10+ Liên hệ 15+ Liên hệ Chưa bao gồm VAT
Thông tin đặt hàng8-10 tuần
Tối thiểu: 1Đặt hàng
- Mô tả chi tiết
- Thông số kỹ thuật
- Bình luận
Van Bi 3 Ngã Điều Khiển Bằng Khí Nén Burocco - Klinger
Series VSP/3V – CS+FF
Size (DN) DN 25
Rating PN 40
Connections Clamp for manifold + 3° way female
threaded 1” GAS – ISO 228
Actuator Pneumatic rotating 90° – DOUBLE
EFFETCT – anodized alloy aluminium
Supply min 6 / max 10 bar
Temperature -25 to +120 °C
Serie VSP/2V – CL
Pneumatic ball valves ON-OFF
Materials: in stainless steel AISI 316L (1.4404)
Size: DN 10 – 50
Rating: PN 40 (10-25) – PN 25 (32-50)
Temperature: -25°C/+120°C.
Serie VSP/2V – FL UNI PN 10/16
Pneumatic ball valves ON-OFF
Materials: in stainless steel AISI 316L (1.4404)
Size: DN 15 – 50
Rating: PN 40 (15-25) – PN 25 (32-50)
Temperature: -25°C/+120°C.
Serie VSP/3V – BW/SW
Pneumatic ball valves ON-OFF
Materials: acciaio inox AISI 316L (1.4404)
Size: DN 10 – 40
Rating: PN 40 (10-25) – PN 25 (32-40)
Temperature: -25°C/+120°C.
Serie VSP/3V – FF
Pneumatic ball valves ON-OFF
Materials: in stainless steel AISI 316L (1.4404)
Misure: DN 10 – 40
Rating: PN 40 (10-25) – PN 25 (32-40)
Temperature di impiego: -25°C/+120°C.
Serie VSP/3V – CL
Pneumatic ball valves ON-OFF
Materials: in stainless steel AISI 316L (1.4404)
Misure: DN 10 – 40
Rating: PN 40 (10-25) – PN 25 (32-40)
Temperature di impiego: -25°C/+120°C.
Serie VSP/3V – FL UNI PN 10/16
Pneumatic ball valves ON-OFF
Materials: acciaio inox AISI 316L (1.4404)
Size: DN 15 – 40
Rating: PN 40 (15-25) – PN 25 (32-40)
Temperature di impiego: -25°C/+120°C.
Serie VSP/3V – CS+FF (MANIFOLD)
Pneumatic ball valves ON-OFF
Materials: in stainless steel AISI 316L (1.4404)
Size: DN 25
Rating: PN 40
Temperature di impiego: -25°C/+120°C.
Serie VSP 3VIE CS IPOCL (MANIFOLD)
Pneumatic ball valves ON-OFF
Materials: in stainless steel AISI 316L (1.4404)
Size: DN 25
Rating: PN 40
Temperature di impiego: -25°C/+120°C.
Serie VSP-VSL 2VIE CHO
Pneumatic ball valves ON-OFF
Materials: in stainless steel AISI 316L (1.4404)
Size: DN65-100-125
Rating: PN 16
Temperature di impiego: -10°C/+100°C.
